Hello,
my name is Florian Daschkiewicz and I am the founder of Daschkiewicz Audio.
The intention of Daschkiewicz Audio is to conceptualize and build high-performance audio equipment, like power amplifiers, loudspeakers and accessories for home use and professional use.
My enthusiasm for good sound started long ago, when I was a teenager. Meanwhile I gained experience as an event technician for more than 20 years.
The goal is to produce excellent, pure sound that is so close to the original that you feel like you are part of the performance.
Enjoy!
Please note, that all presented products are for reference use only and can currently not be purchased

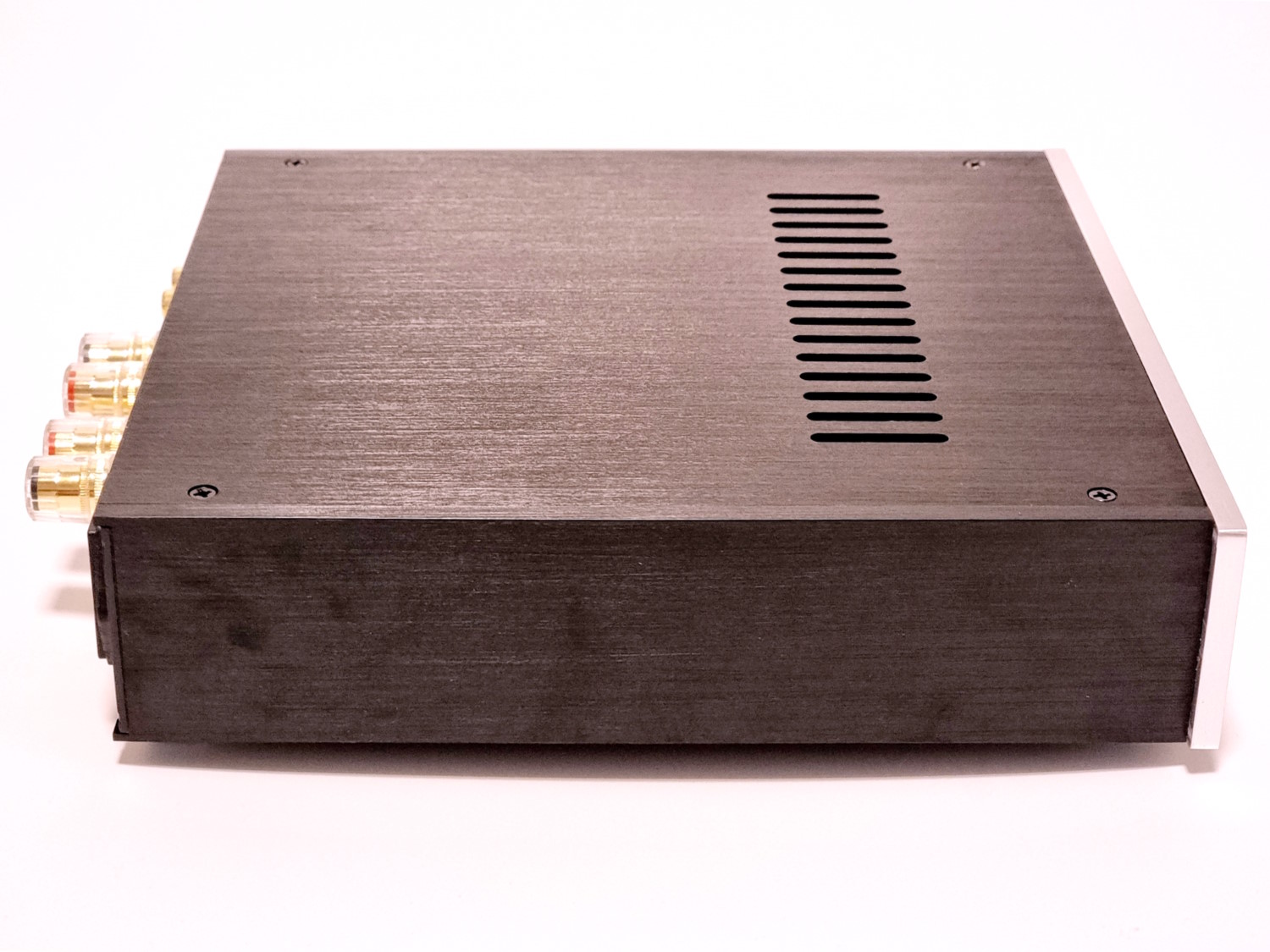

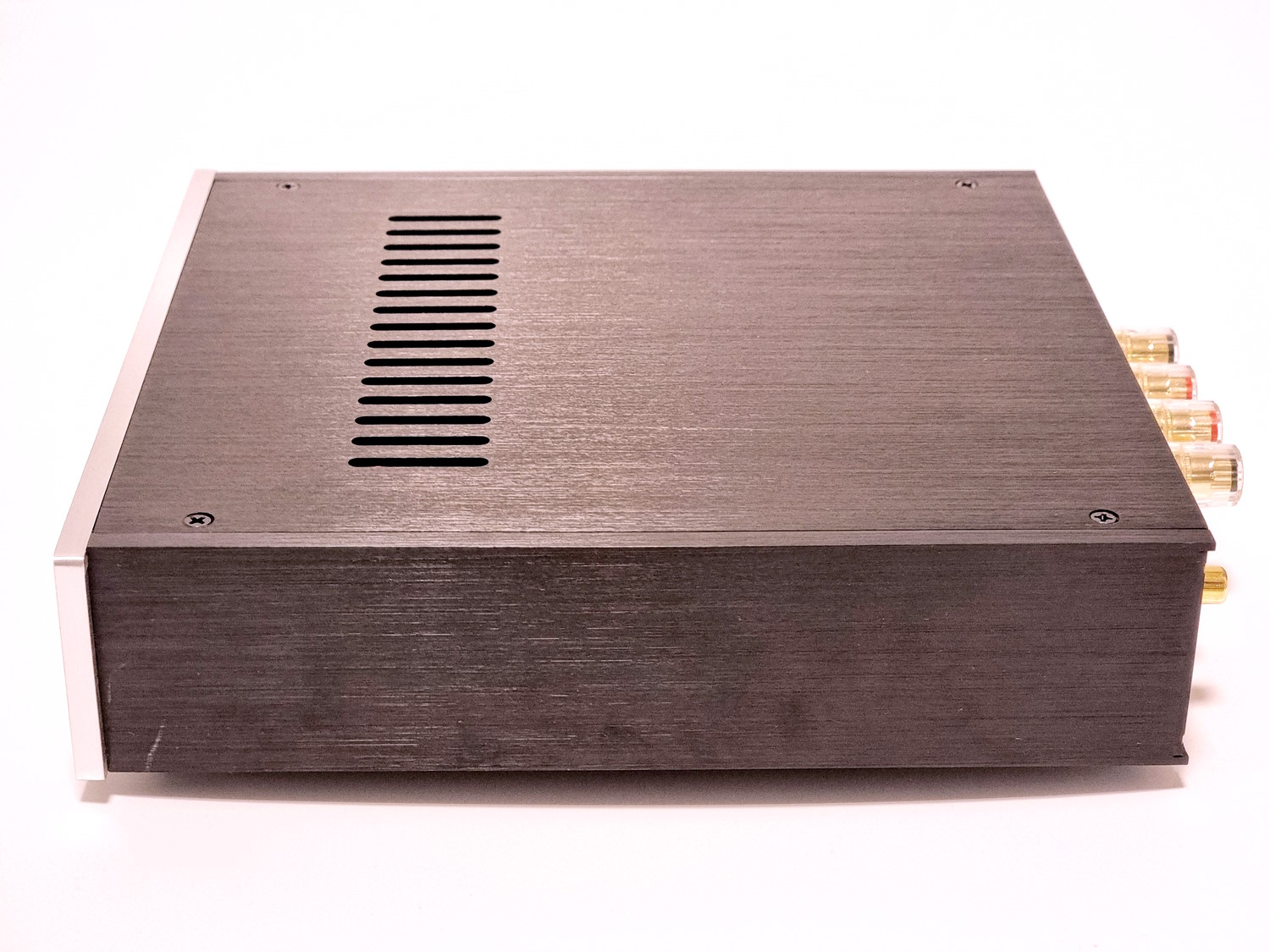

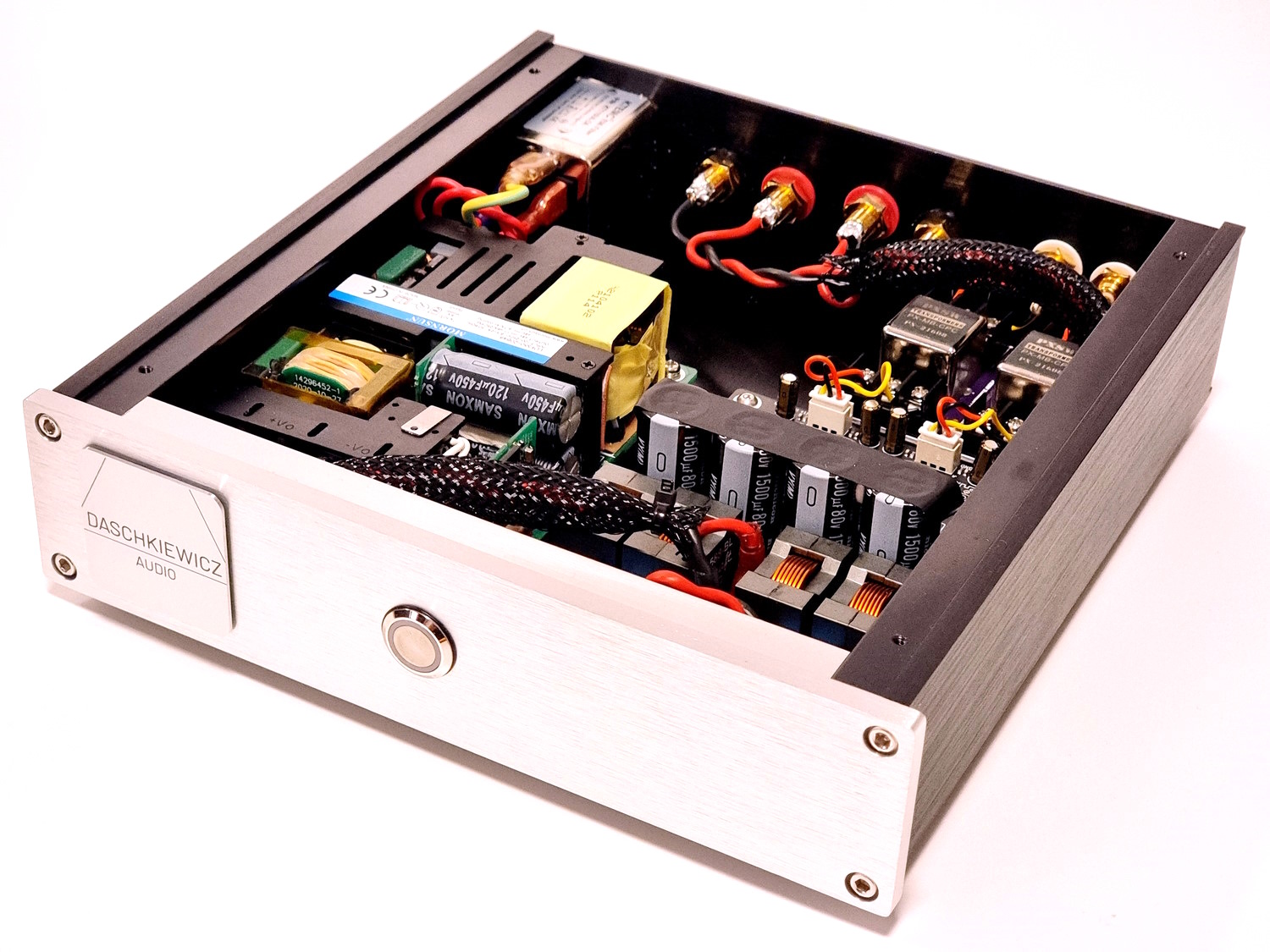

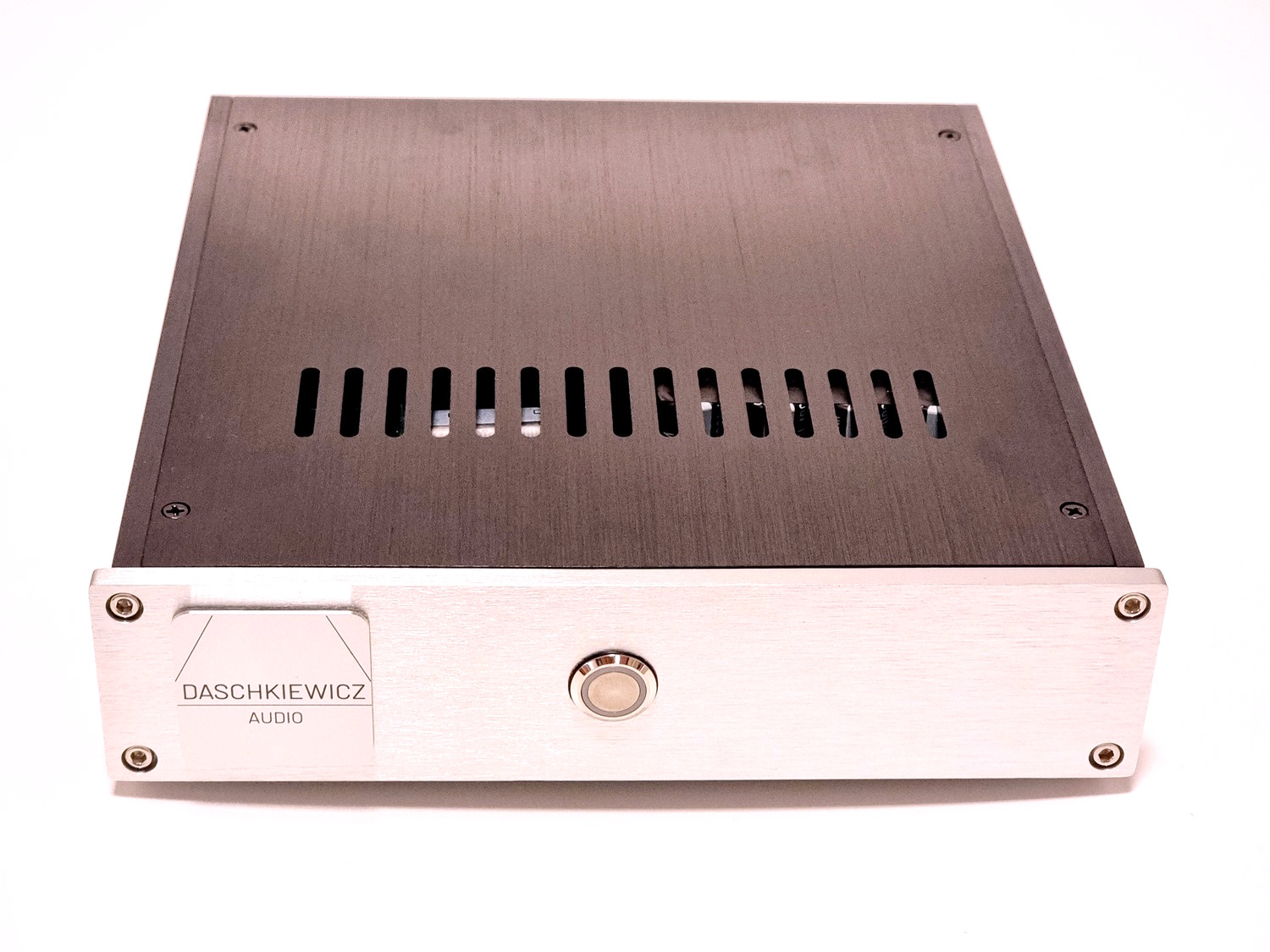

High-performance audiophile Class D amplifier, which combines excellent sound quality with Class D efficiency. The device features an integrated post filter feedback design and a proprietary high-speed gate driver error correction (PurePath™ Ultra-HD).
This technology ensures extremely low distortion across the entire audio frequency range and superior audio quality.
By combining an enhanced input stage and high quality components, the amplifier achieves incredibly low noise and distortion for clear and transparent playback.
The reasonable design is completed by an integrated EMI filter and short cable ways with generous wire diameters.
| Amplifier Chip | TPA3255 |
| Input Connectors | Rev 1 2x RCA (unbalanced) Rev 2 2x XLR female (balanced) |
| Output Connectors | 2x Binding Post Terminal (up to 4 mm² / AWG12) |
| Output Power | 2x 260 W @ 4 Ω (1 % THD+N) 2x 150 W @ 8 Ω (1 % THD+N) |
| Frequency Response | 20 Hz - 20 kHz (±0.5 dB) |
| THD+N | 0.0007 % |
| Dynamic Range | 125 dBA |
| Output Noise | 18 µV (A-weighted) |
| Input Voltage | 90 - 260 V AC |
| Electrical Efficiency | 94 % |
| Standby Power Consumption | 0.5 W |
| Dimensions (W x H x D) | 220 x 60 x 255 mm 8.66 x 2.36 x 10.03 in |
| Weight | 2.4 kg 5.29 lbs |
| User Manual |

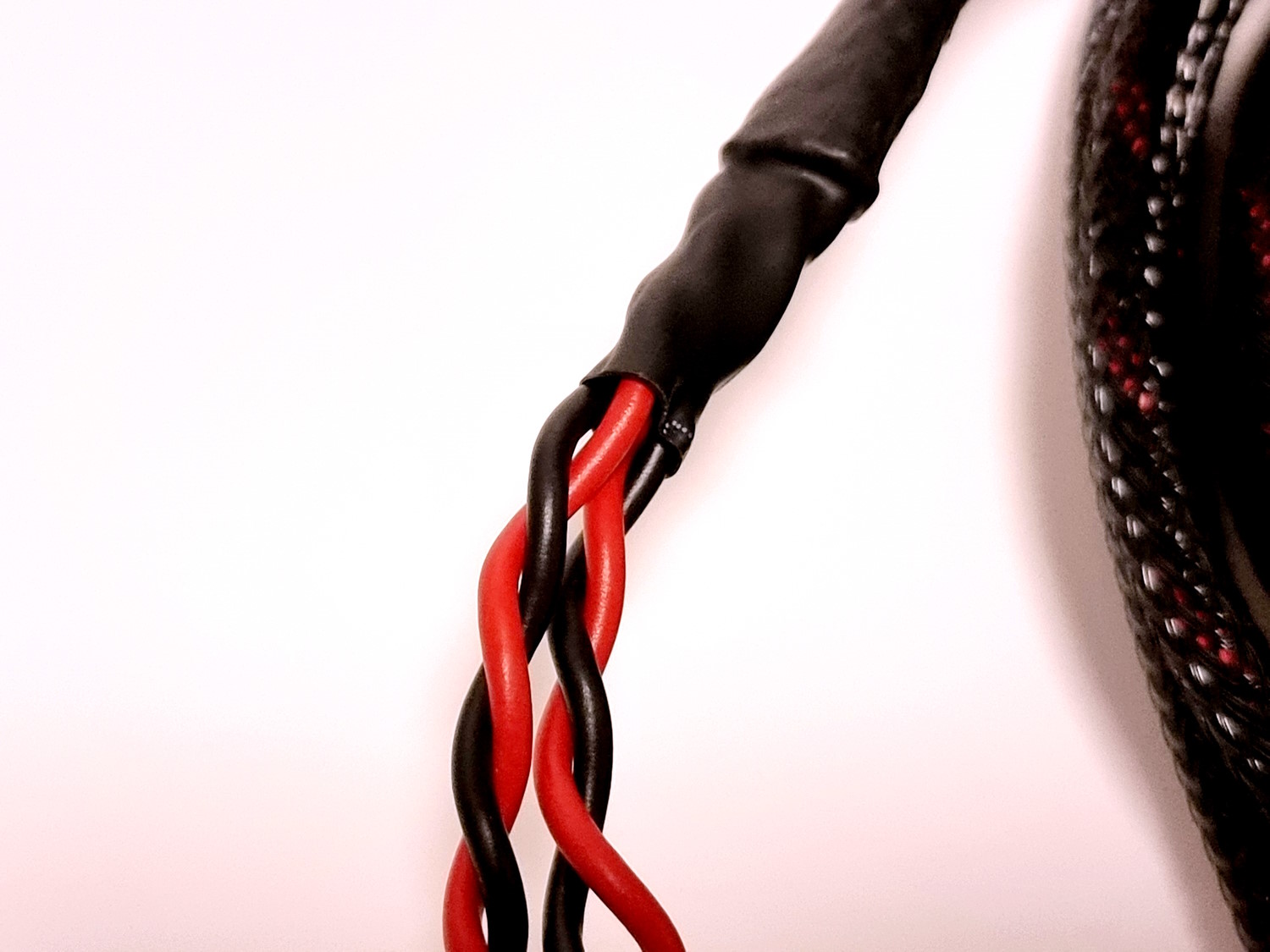

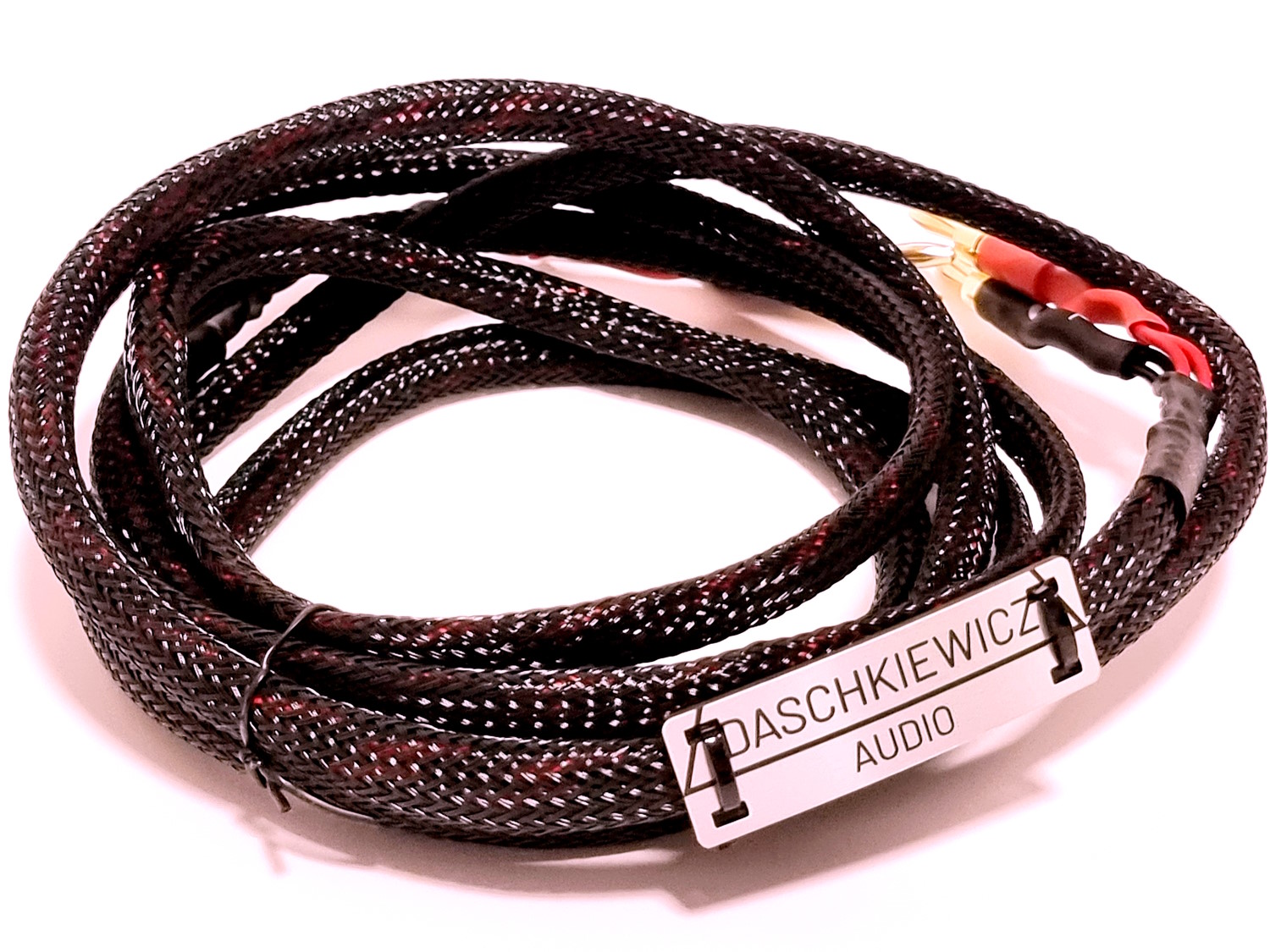

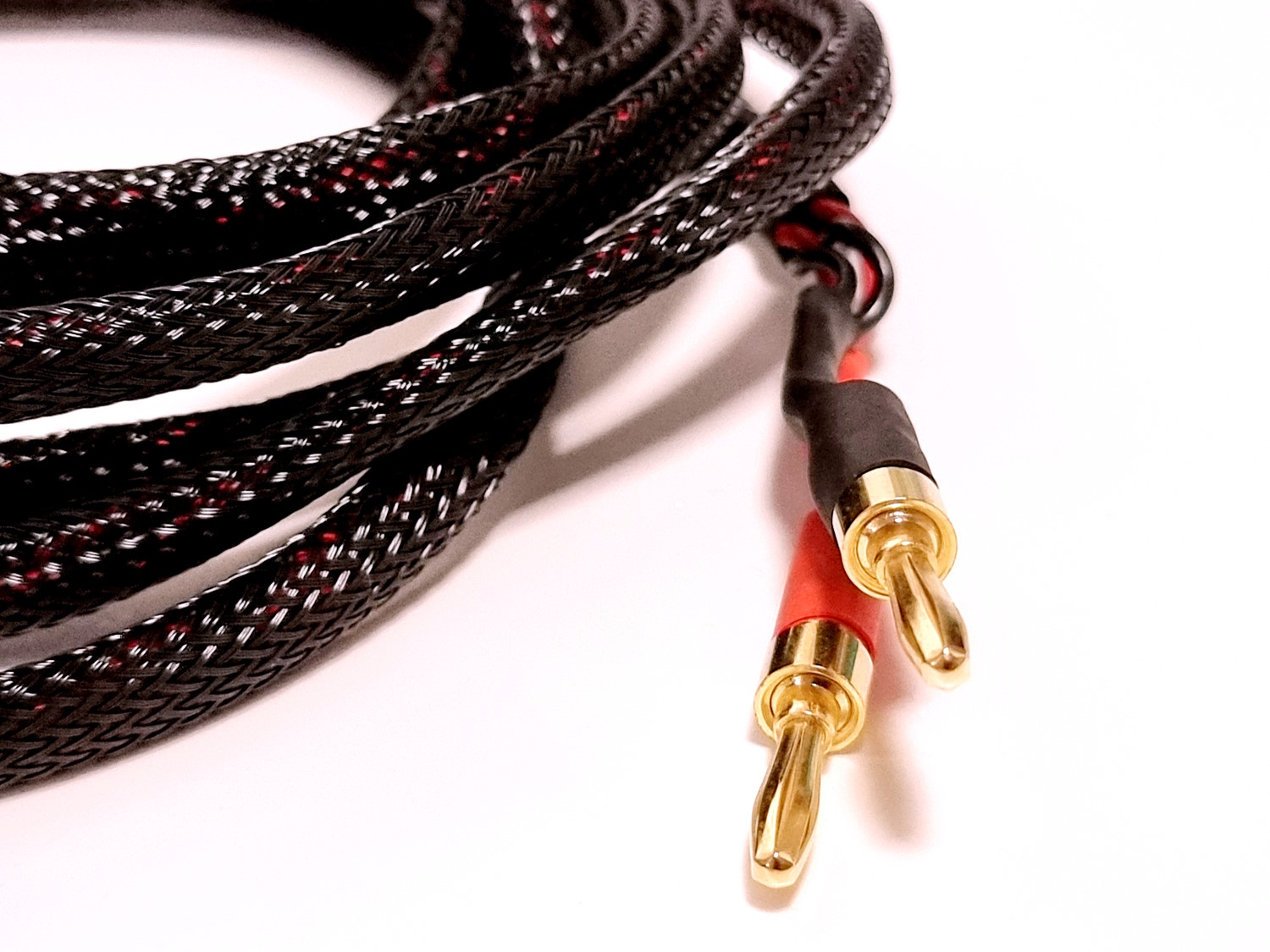

High-performance audiophile speaker cable. Gold-plated banana plugs and double twisted pair cables in a robust fabric tube for enhanced current flow and interference resistance.
| Connectors | 2x Banana Plug |
| Wire Core Material | OFC |
| Wire Diameter | 2x 1.5 mm² 2x AWG15 |
| Length | 3 m 9.84 ft |
| No downloads available |

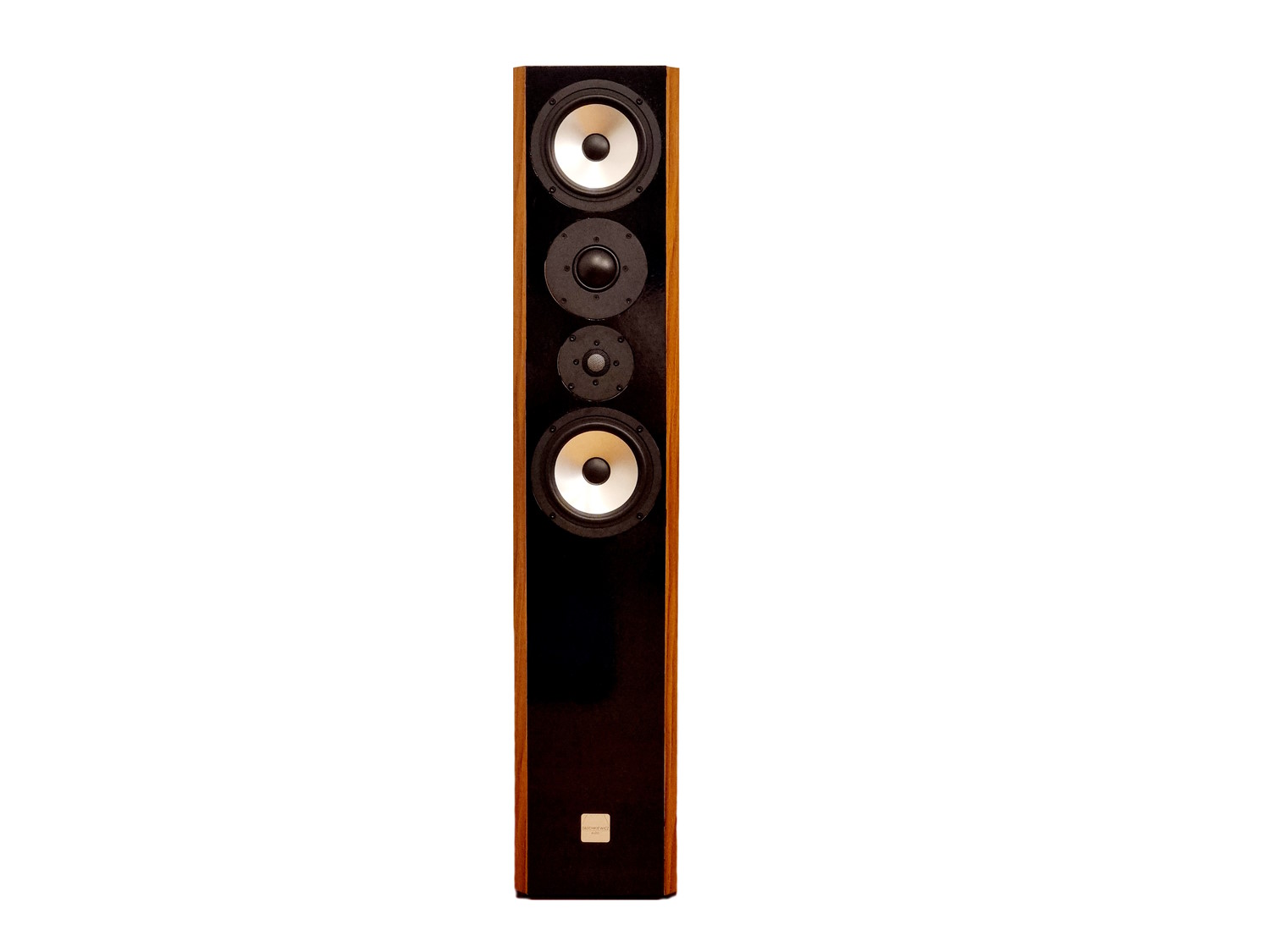

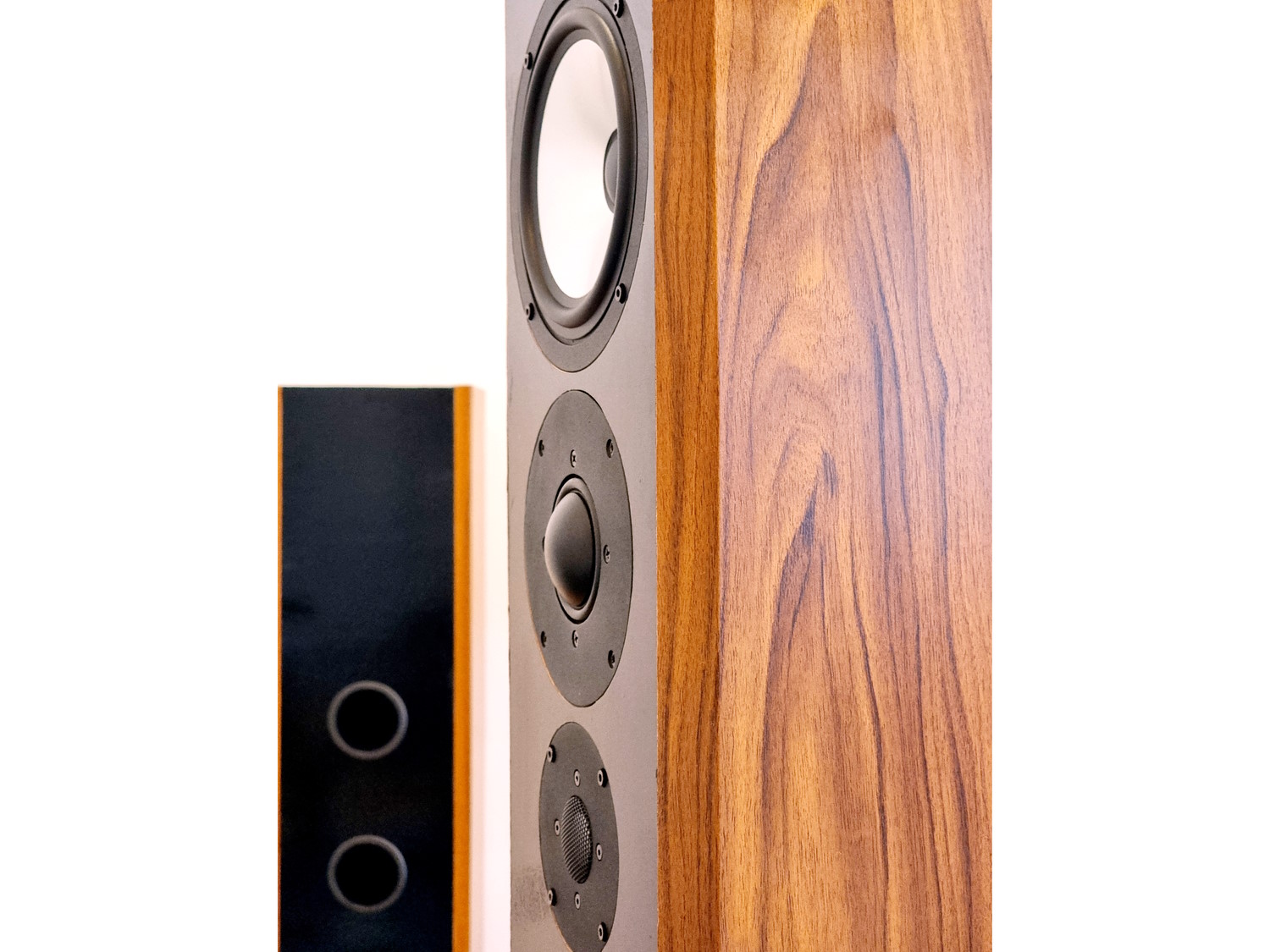

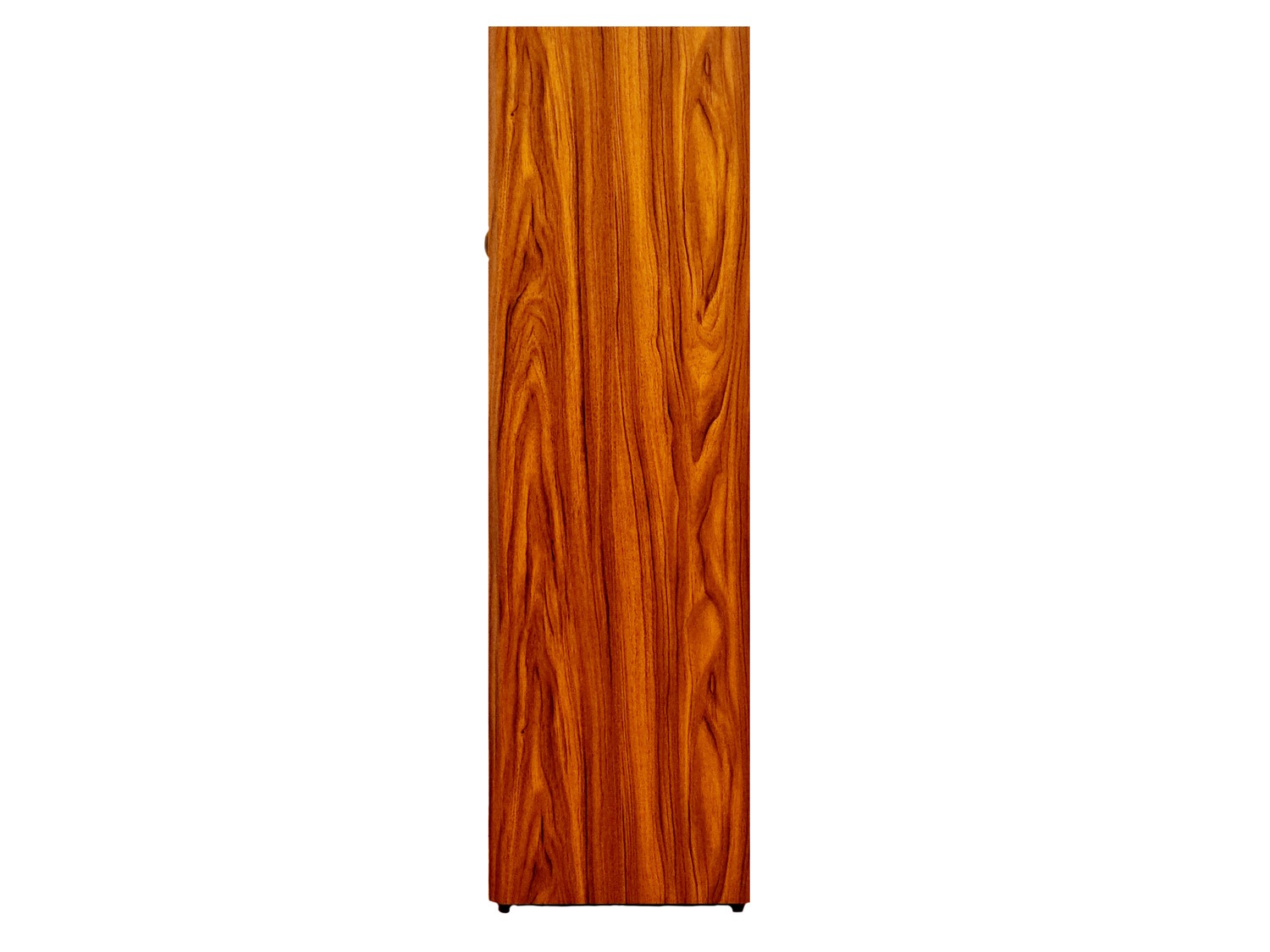

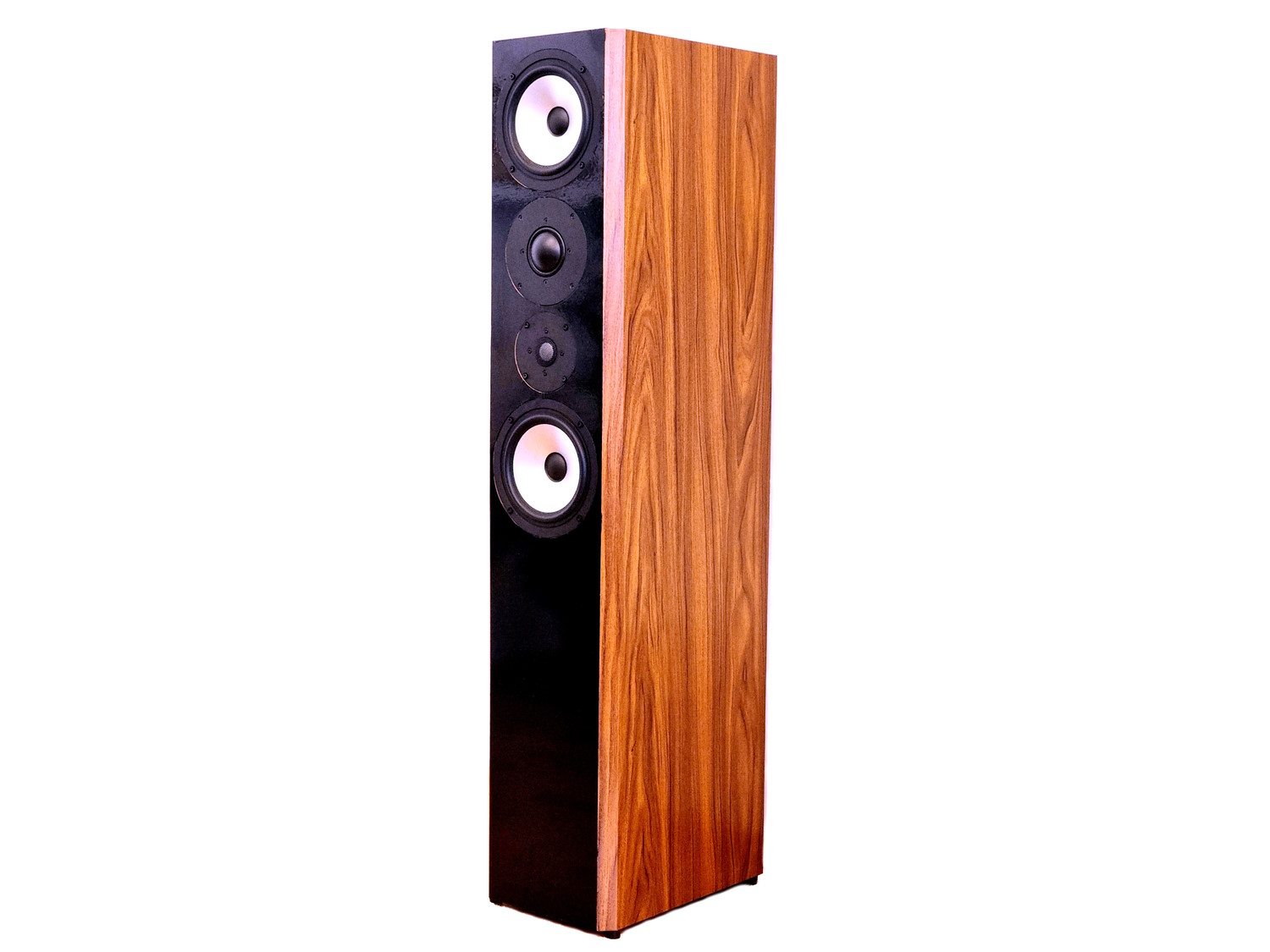

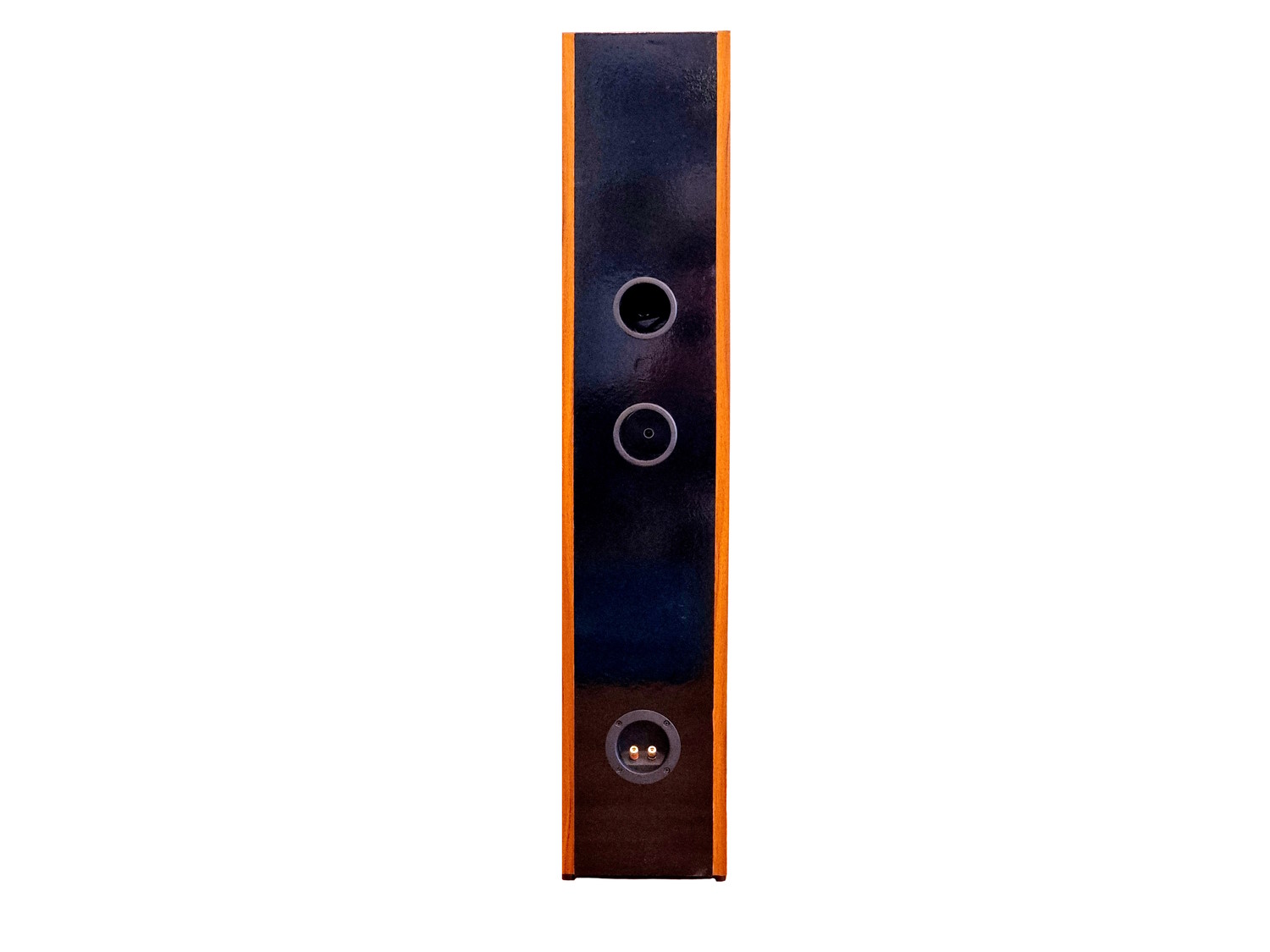

The ASL1 can best be described as having a very warm and melodious sound. The two 17 cm (6.5 in) woofers with aluminum membranes in their two separate bass reflex housings produce a voluminous, yet precise bass that you would not expect from such a construction. Even in the deepest bass range, the ASL1 remains clean and clear at higher volumes.
The highlight of the ASL1 is the 50 mm (2 in) midrange dome. It ensures an incredibly spatial stage image in the midrange with good center location, which is not often found. Even recordings that are spatially not perfect still sound good with the ASL1, like separated from the speakers. This makes it possible to enjoy music in a relaxed manner, even over a long period of time.
A ceramic dome is used in the treble range, which rounds off the overall picture with its silky-smooth sound and excellent linearity.
| Surface | Black Piano lacquer/Walnut |
| Construction Principle | 3-way bass reflex |
| Drivers | LR: 2x 170 mm / 6.5 in MR: 1x 50 mm / 2 in HR: 1x 25 mm / 1 in |
| Input Connectors | Binding Post Terminal (up to 4 mm² / AWG12) |
| Rated Load Capacity | 140 W |
| Music Load Capacity | 200 W |
| Nominal Impedance | 4 Ω |
| Frequency Response | 30 Hz - 20 kHz (-10 dB) 45 Hz - 25 kHz (-3 dB) |
| Sound Pressure Level | 86 dB (1 W/1 m) |
| Crossover Frequency | 700 / 3500 Hz |
| Dimensions (W x H x D) | 228 x 1150 x 350 mm 9 x 45 x 14 in |
| Weight | 25 kg 55.12 lbs |
| Technical Description |
